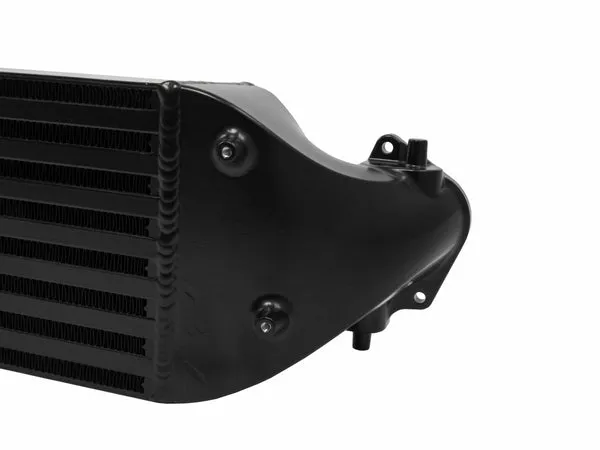

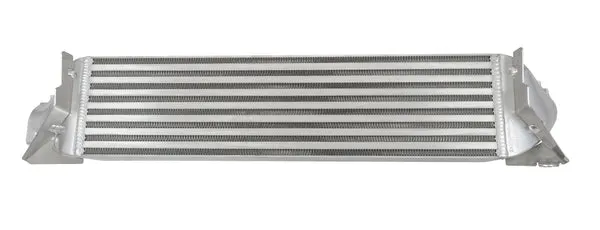

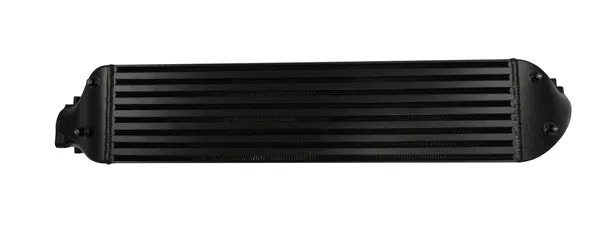

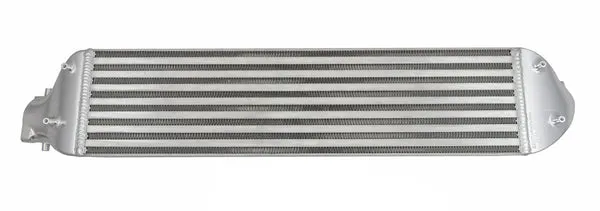

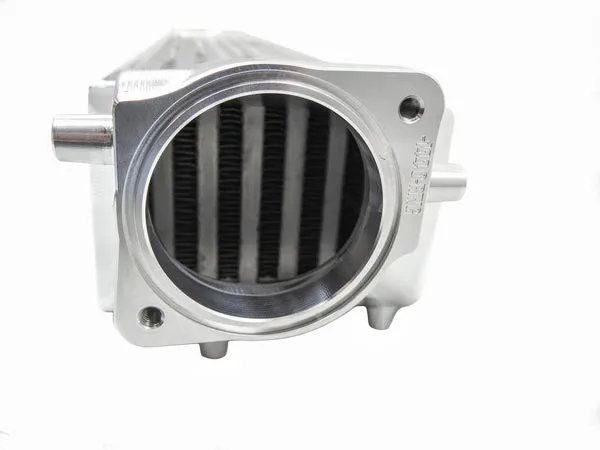

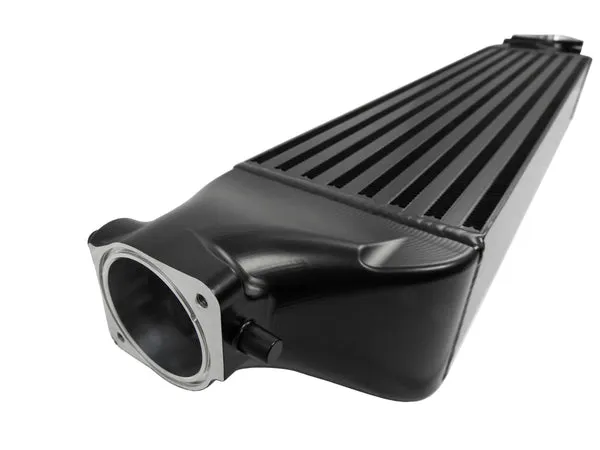

Honda’s 1.5L turbo Civic is extremely susceptible to heat-soak, especially when retaining the factory intercooler. Excessive heat-soak increases the risk of detonation and causes major power-loss due to high charge air and cylinder temperatures. These issues become even more prevalent with spirited driving and/or increased power outputs. The PRL Motorsports intercooler upgrade decreases charge air temperatures while increasing potential airflow with its dense 550 horsepower rated.  The 25.5x4x6.3” bar-and-plate bar-and-plate core and machined billet aluminum end tanks! This intercooler utilizes factory mounting spots with our embossed end tanks. Kits will come with all hardware needed for a seamless install.

Important Notes:

NO ECU CALIBRATION REQUIRED

THERE ARE (2) TOTAL O-RINGS IN THE FACTORY CHARGE PIPE SYSTEM. O-RINGS MAY BE SUBJECT TO REPLACEMENT IF TORN, DRY-ROTTED, DISFORMED OR HIGH MILEAGE

REMOVAL OF LOWER FACTORY INTAKE AIR BOX DAMPER IS RECOMMENDED FOR OPTIMAL FITMENT

FITS FACTORY CHARGE PIPING OR PAIR WITH OUR CHARGE PIPE UPGRADE KIT FOR OPTIMAL PERFORMANCE

Replaces OEM Honda Part Number 19710-5AA-A01


Performance Gains:

9 horsepower and 3 ft/lb torque gains by simply bolting on
50 F degree drop in post charge air temperature at peak
Average of 36 F degree drop in post charge air temperature
Increased efficiency and consistency in power delivery
Increased engine safety


Kit Includes:

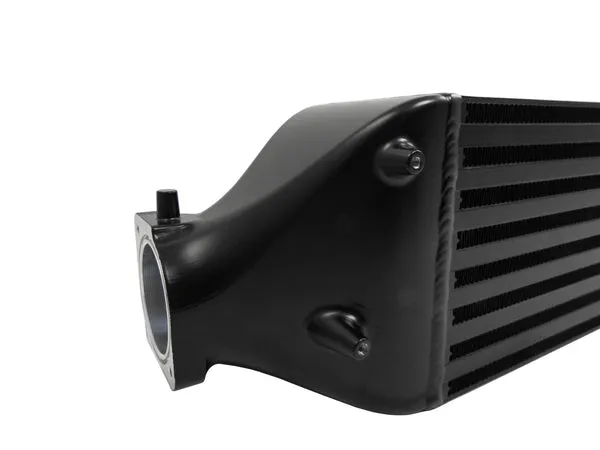

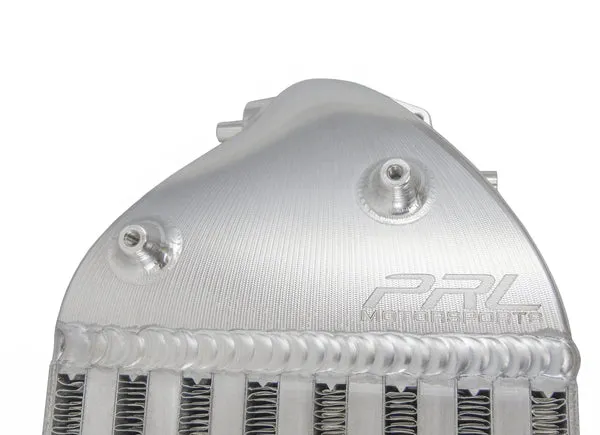

(1) Intercooler Assembly w/ Billet End Tanks
(2) Air Guides w/ Stainless Hardware

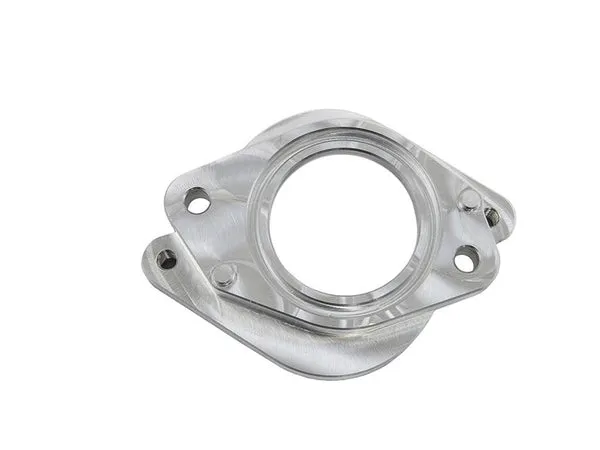

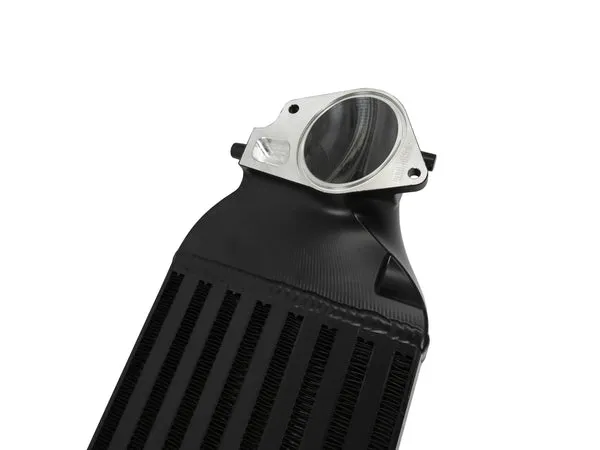

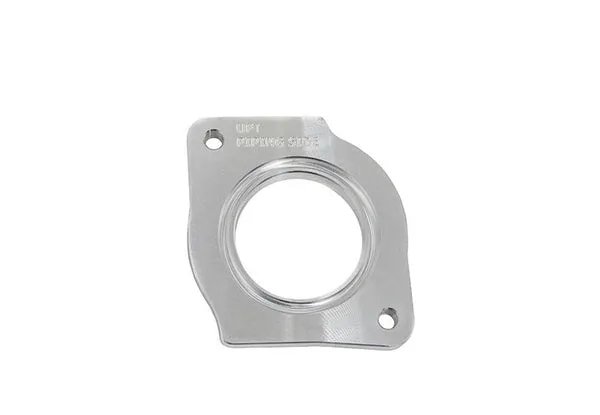

(2) Billet Aluminum Factory Charge Pipe Adapters
(1) Cardboard Stencil w/ “PRL” Logo
(2) PRL Factory Style Replacement O-Rings

Data:
TESTING DATA BLOG POST
DESIGN BLOG POST
INTERCOOLER CORE DESIGN BLOG POST

Fitment

Fits all 2016-2021 Honda Civic 1.5T
Fits all variant models including Si, CVT, 6MT, RHD, International Models, Etc.
50 State Legal CARB Approved: EO D-878
